Road & Track Coilover Suspension VWS MU21S2 Audi S3 / RS3 / TT / TTS / TT RS, SEAT Leon Cupra ST, Škoda Octavia RS, VW Golf VII & VIII R (4WD & Variant)

Road & Track Coilover Suspension – VWS MU21S2
Audi S3 / RS3 / TT / TTS / TT RS, SEAT Leon Cupra ST, Škoda Octavia RS, VW Golf VII & VIII R (4WD & Variant)

The Road & Track Coilover Suspension VWS MU21S2 has been developed based on over 40 years of experience in top-level motorsport and advanced chassis technology. This high-performance coilover suspension is designed for powerful four-wheel drive models and performance estates, with one clear goal: maximum grip and precision on the street and track, without compromising daily comfort.

Thanks to the unique DFV (Dual Flow Valve) technology, this suspension offers an exceptional balance between sportiness and comfort. Road imperfections are smoothly absorbed, while maximum stability and traction are maintained under higher loads. All dampers have been extensively tested for corrosion resistance according to ISO 9227 and the system is fully rebuildable. This results in long-lasting performance and a worldwide 2-year manufacturer's warranty.

General Features

• DFV technology (Dual Flow Valve)

• Individually adjustable ride height

• Fully rebuildable construction

• Corrosion test according to ISO 9227 (salt spray test)

• 2-year manufacturer's warranty

Front Axle

• McPherson strut in upside-down design

• Combined compression and rebound adjustment with a single knob

• Adjustable spring preload

• Spring rate: 70 N/mm

• Lowering compared to standard according to assembly instructions

• Use of original top mounts

Rear Axle

• Conventional shock absorber

• Combined compression and rebound adjustment with a single knob

• Adjustable spring preload

• Spring rate: 80 N/mm

• Lowering compared to standard according to assembly instructions

• Use of original top mounts

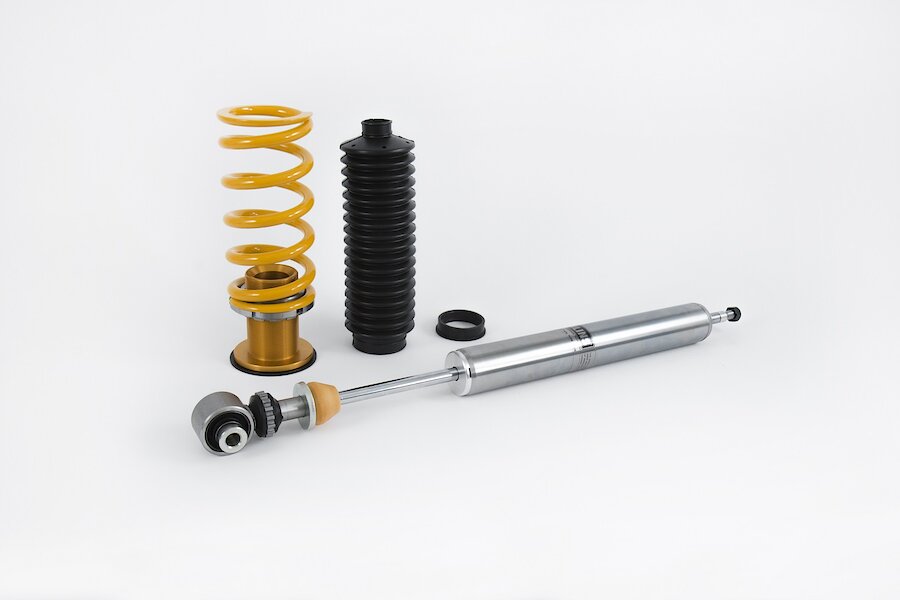

Included Parts

• Complete coilover set including springs and mounting materials

• C-spanner for spring preload adjustment

• Manual and assembly instructions

• Sticker set

Cancellation kits (not included, ordered separately)

• 35020-15: Seat Leon / Cupra ST (5F), Skoda Octavia RS (5E / NX), VW Golf VII (5G), VW Golf VIII (CD)

• 35020-23: Audi A3 (8V), Audi S3 (8V)

• 35020-24: Audi RS3 (8V), Audi TT / TTS / TT RS (FV / 8S)

Suitable for, among others

• Audi S3 (8V) 2012–2019

• Audi S3 (8Y) 2020–

• Audi RS3 (8V) 2015–2019

• Audi RS3 (8Y) 2021–

• Audi TT / TTS / TT RS quattro (FV / 8S) 2014–2019

• SEAT Leon ST / Leon Cupra ST (5F)

• Škoda Octavia RS 4WD Combi (5E / NX)

• Volkswagen Golf VII R / R Variant (5G)

• Volkswagen Golf VIII R / R Variant (CD)

Please note: this suspension is supplied without TÜV certificate for Germany, but with manufacturer's declaration (SUI).

DFV Technology – the Öhlins difference

• Equal damping characteristics in compression and rebound

• Faster repositioning of wheel and tire after unevenness

• More grip, stability, and traction

• More comfortable than traditional coilovers at low speeds

• Consistent performance, even under prolonged load and high temperatures

Thanks to thermal compensation in the damping mechanism, damping remains constant regardless of temperature changes. This ensures predictable handling, both on the street and on the track.

Installation by Vermado Automotive
Vermado Automotive specializes in high-quality suspension solutions for performance and four-wheel drive vehicles. We have extensive experience with Road & Track coilovers and DFV suspension technology. Installation and adjustment are carried out with attention to detail and driving goals, so that your vehicle performs optimally in terms of grip, comfort, and control.

Item number: VWS MU21S2
